HSC HSC-T-3-460-S Shell & Tube Cooler
Product specifications and documentation
HSC-T-3-460-S
HSC HSC-T-3-460-S Shell & Tube Cooler

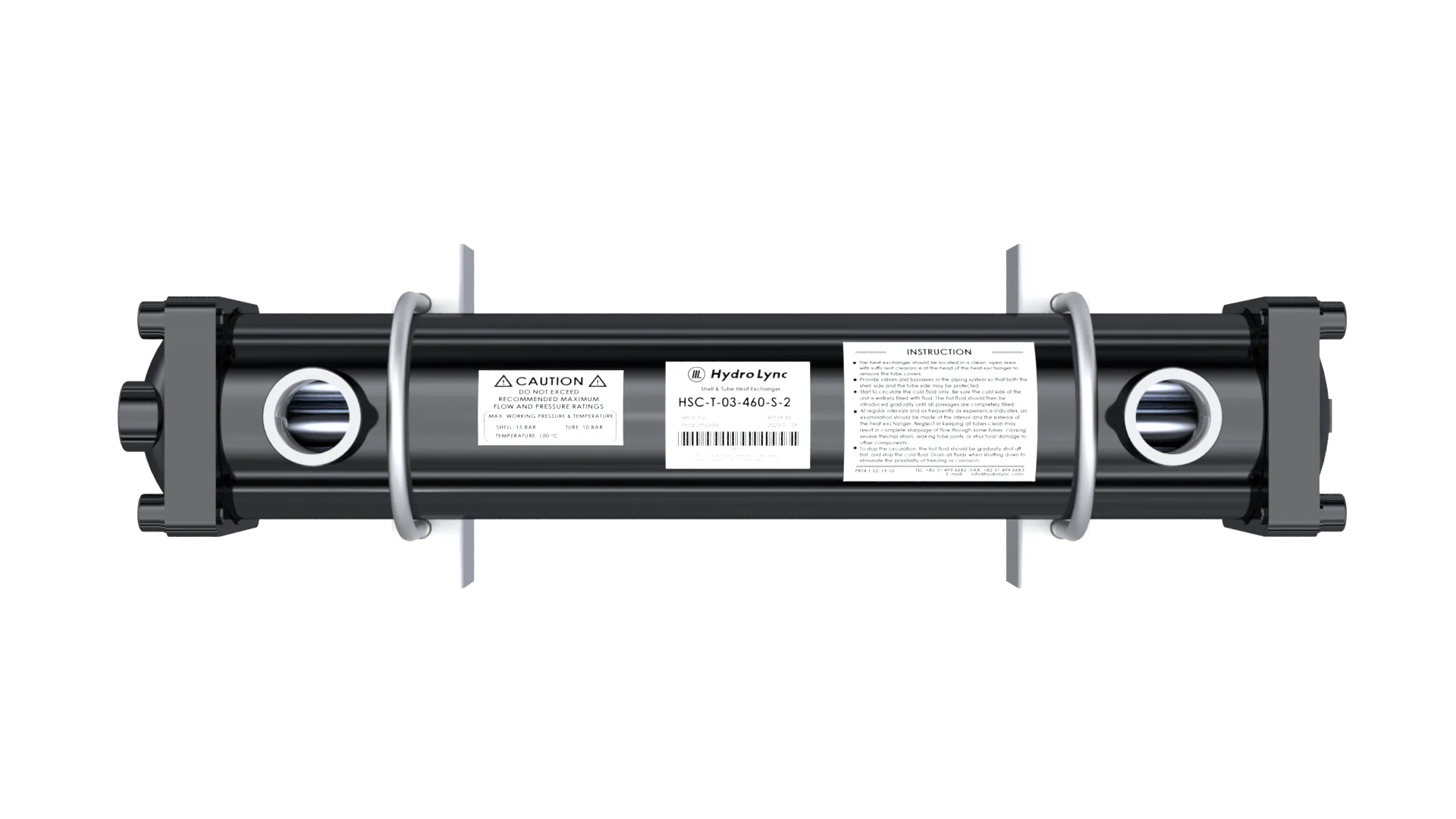

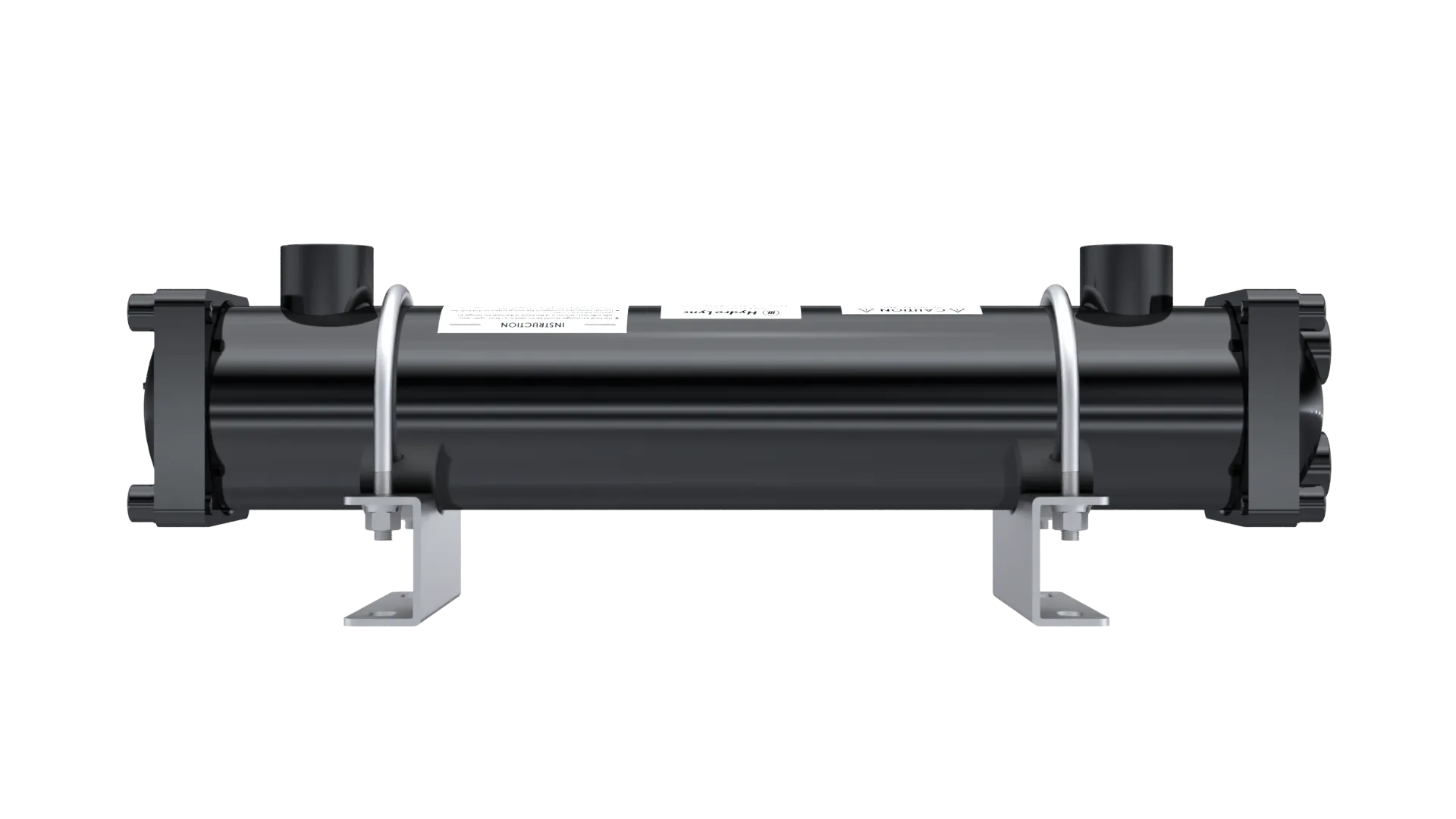

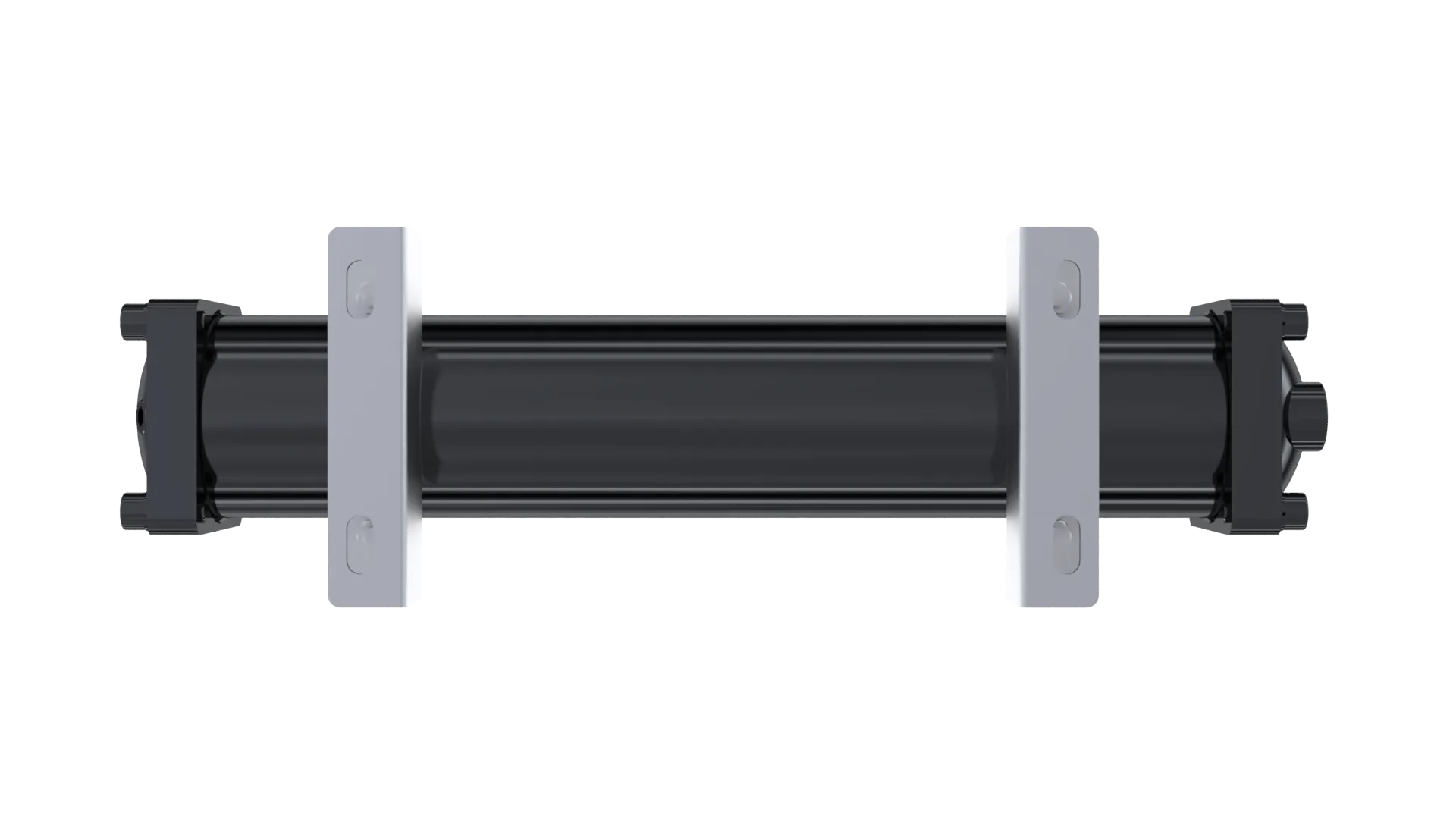

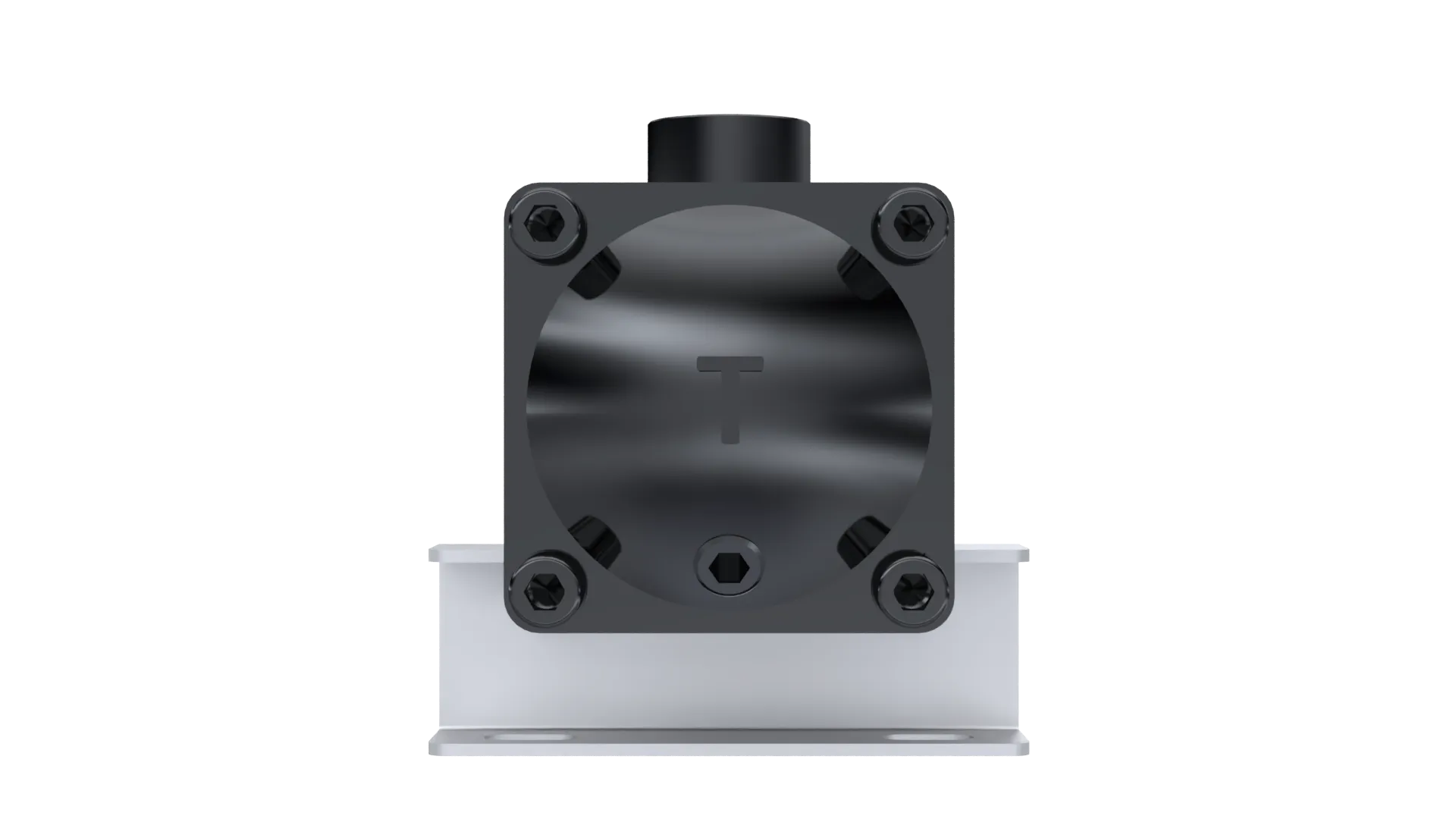

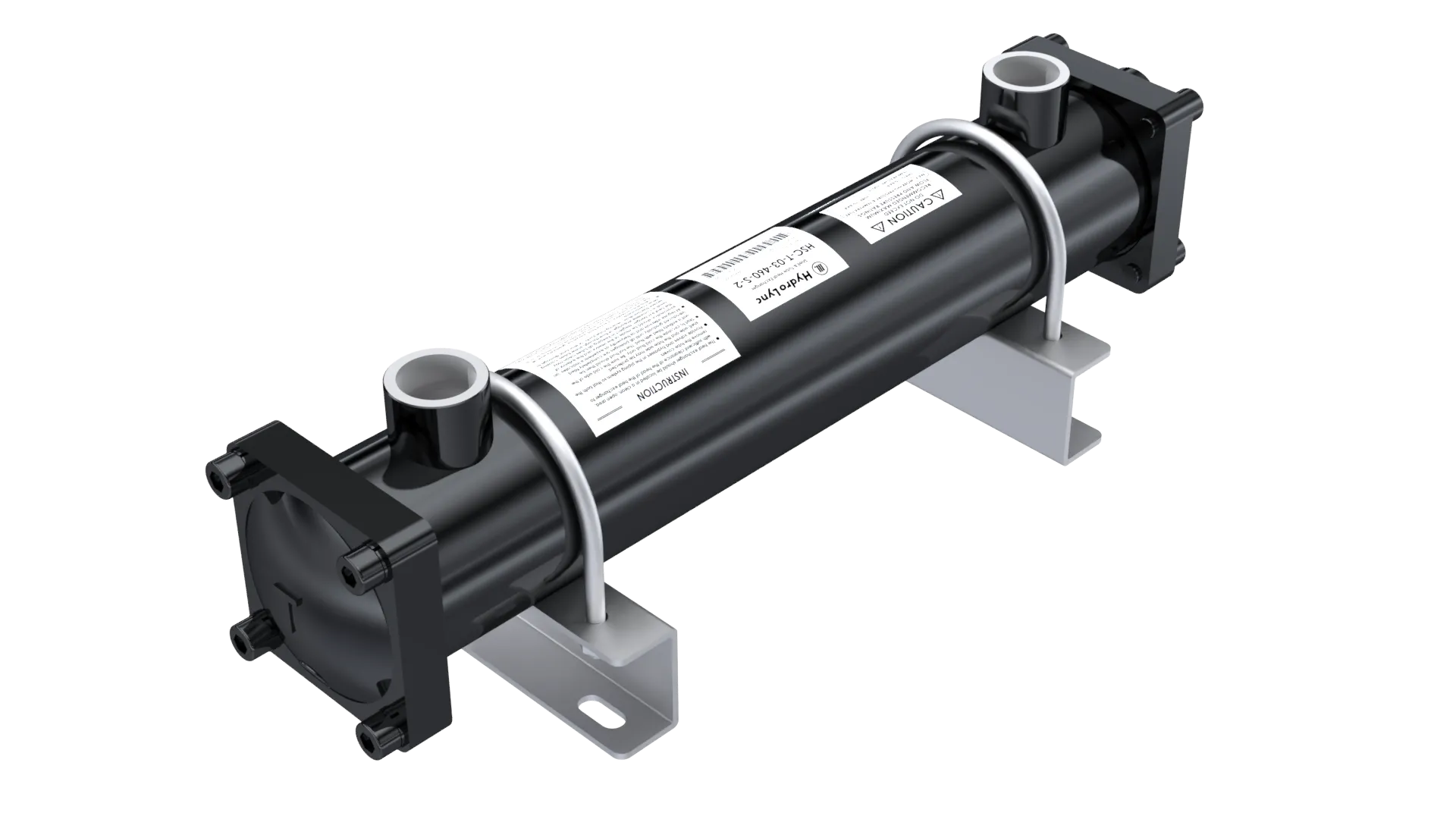

HydroLync HSC-T-3-460-S shell and tube heat exchanger
Quick Specifications
Heat Transfer Area1 m²
Heat Transfer (kW)14 kW
Pressure Drop (Oil)0.99 bar
Pressure Drop (Water)0.7 bar
Detailed Specifications
Performance
Heat Transfer Area
1 m²
Heat Transfer (kW)
14 kW
Pressure Drop (Oil)
0.99 bar
Pressure Drop (Water)
0.7 bar
Heat Transfer (kcal/h)
12400 kcal/h
Max Flow Rate
65 LPM
Working Pressure
0.7 bar
Dimensions
Overall Length (A)
512 mm
Tube Length (B)
460 mm
Shell Length (C)
348 mm
Shell Diameter (D)
89.1 mm
Oil Port (E)
1
Water Port (F)
1/2
Port Center Height (G)
100 mm
Port Spacing (H)
50 mm
Flange Diameter (I)
159 mm
Foot Spacing (J)
100 mm
Foot Width (K)
154 mm
Foot Height (L)
19 mm
Foot Thickness (M)
32 mm
Bolt Hole (N)
11x24
Base Length (O)
545 mm
Technical Specifications
Oil Flow Rate
110 L/min
Water Flow Rate
65 L/min
Max Working Pressure - Shell (bar)
15 bar
Max Working Pressure - Cover (bar)
10 bar
Max Test Pressure - Shell (bar)
22 bar
Max Test Pressure - Cover (bar)
15 bar
Fluid Channels - Shell
1 Pass
Fluid Channels - Cover
2 Pass
