HSC HSC-T-4-340-S Shell & Tube Cooler
Product specifications and documentation
HSC-T-4-340-S
HSC HSC-T-4-340-S Shell & Tube Cooler

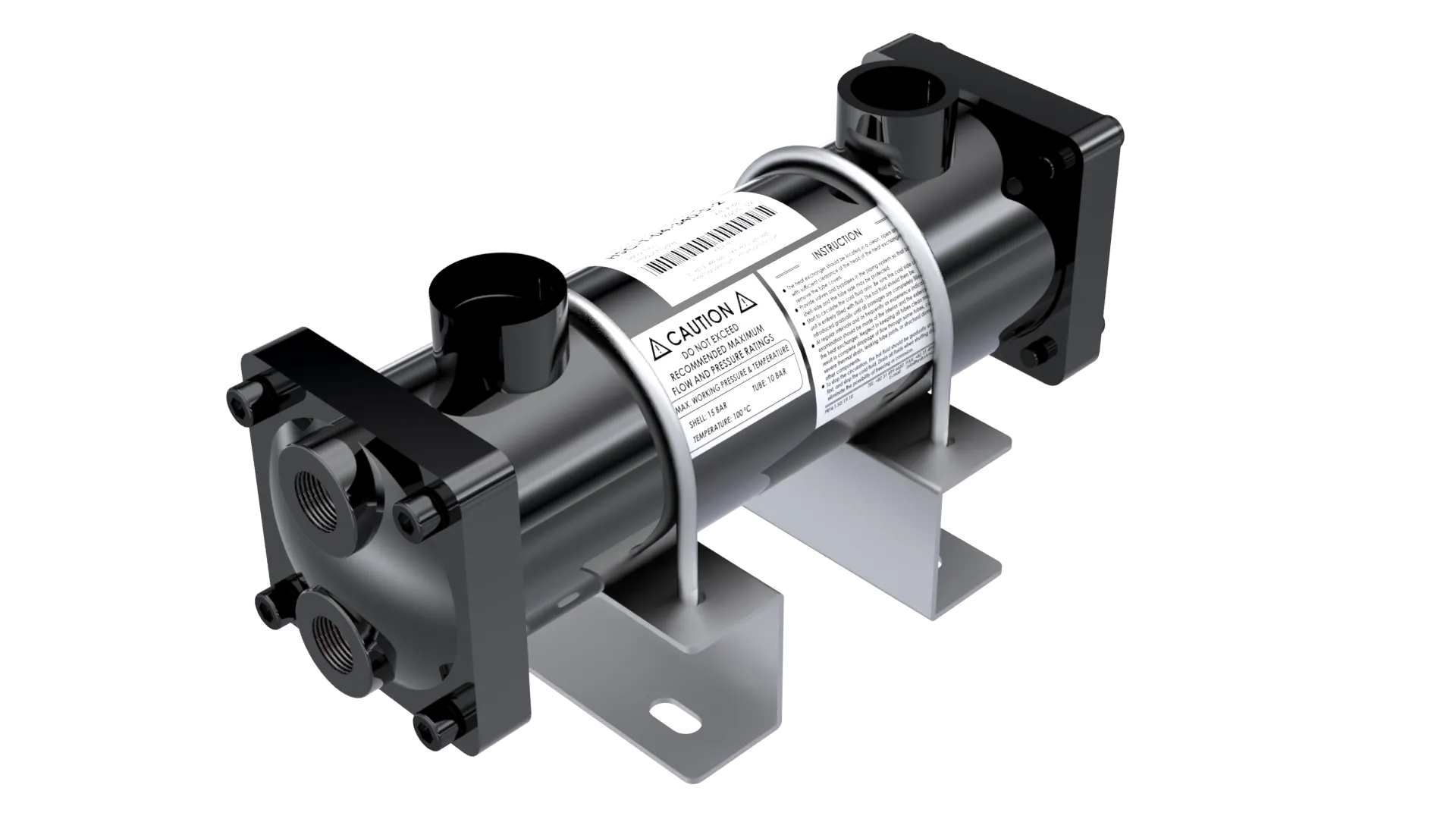

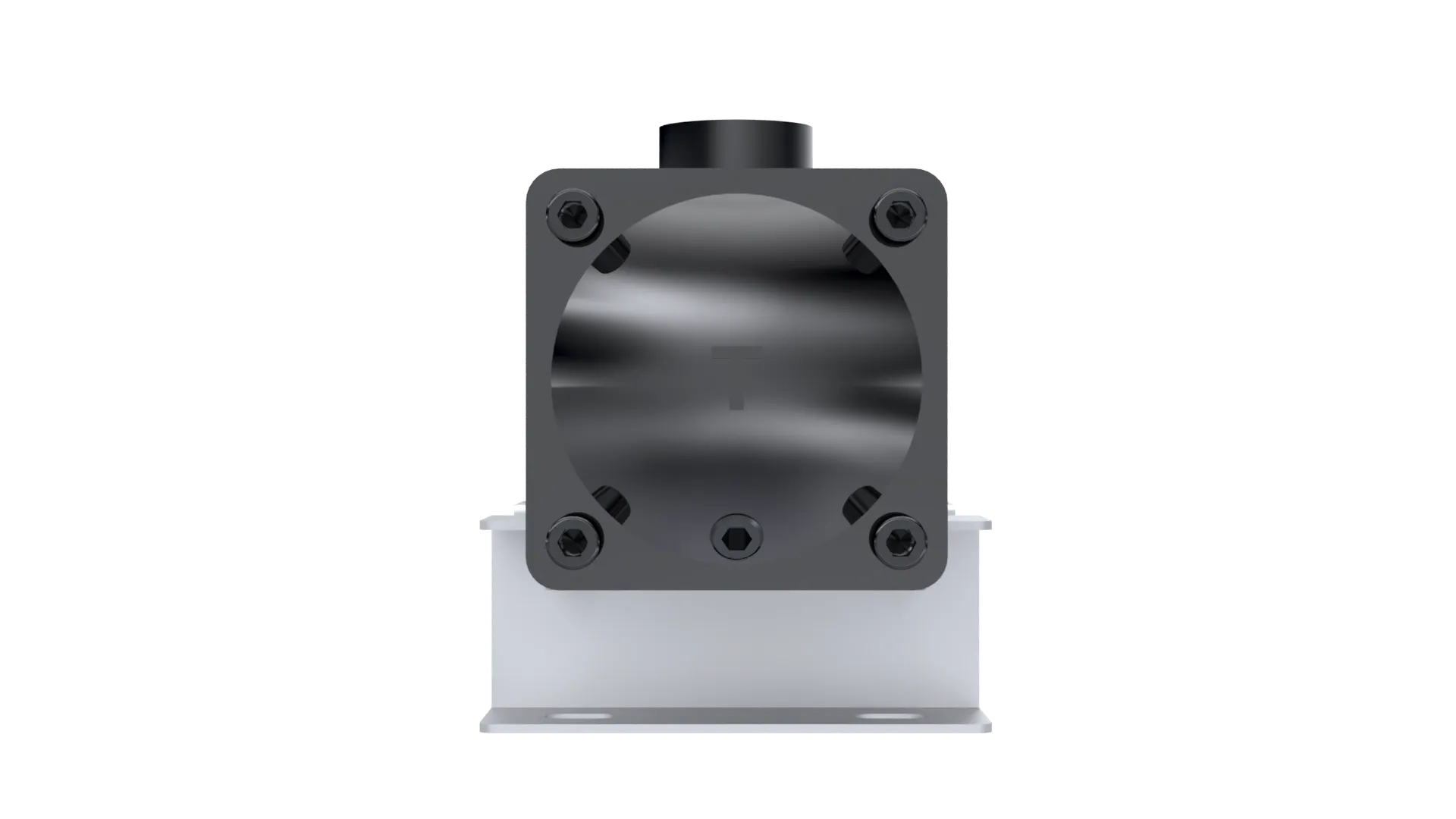

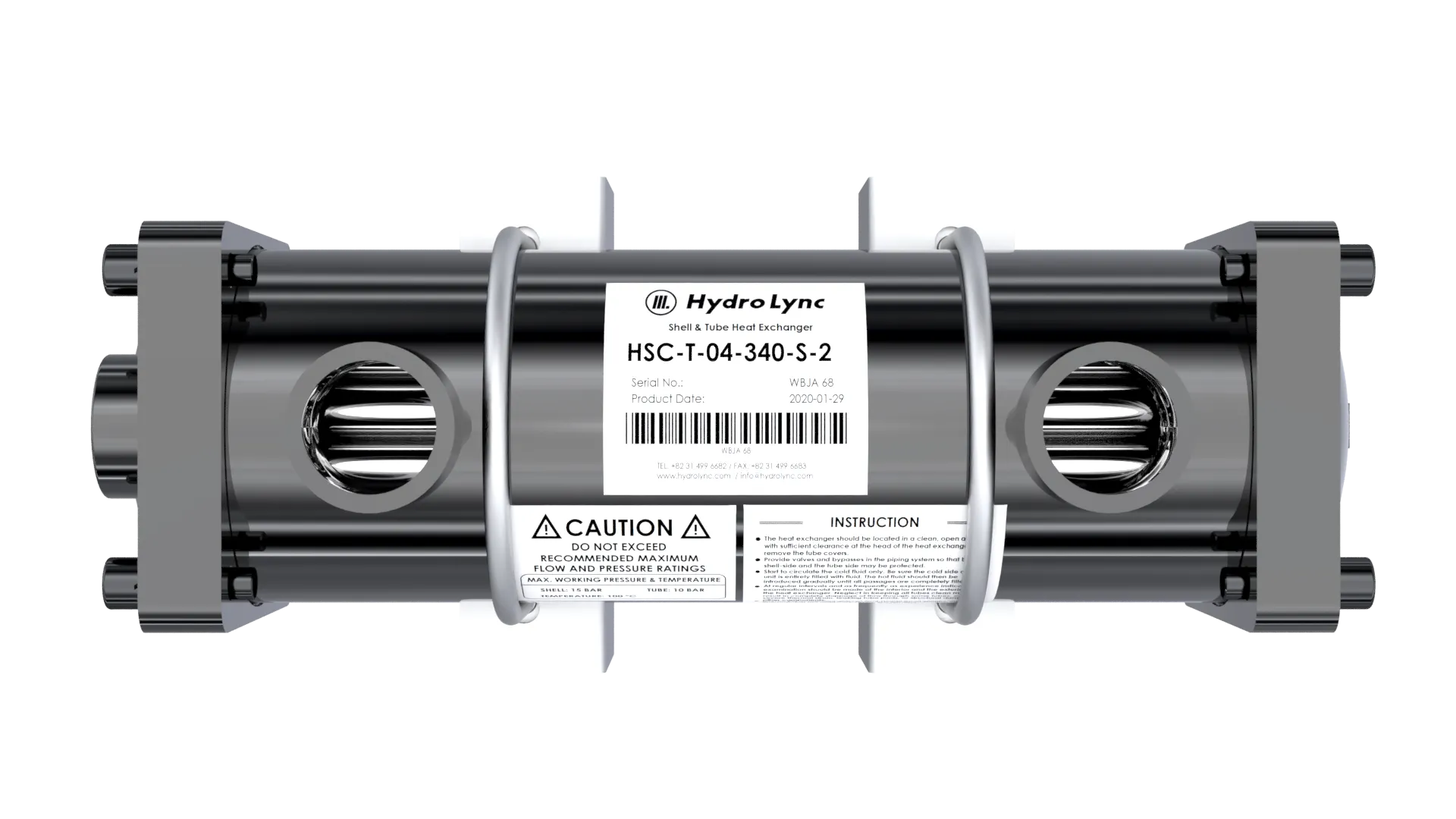

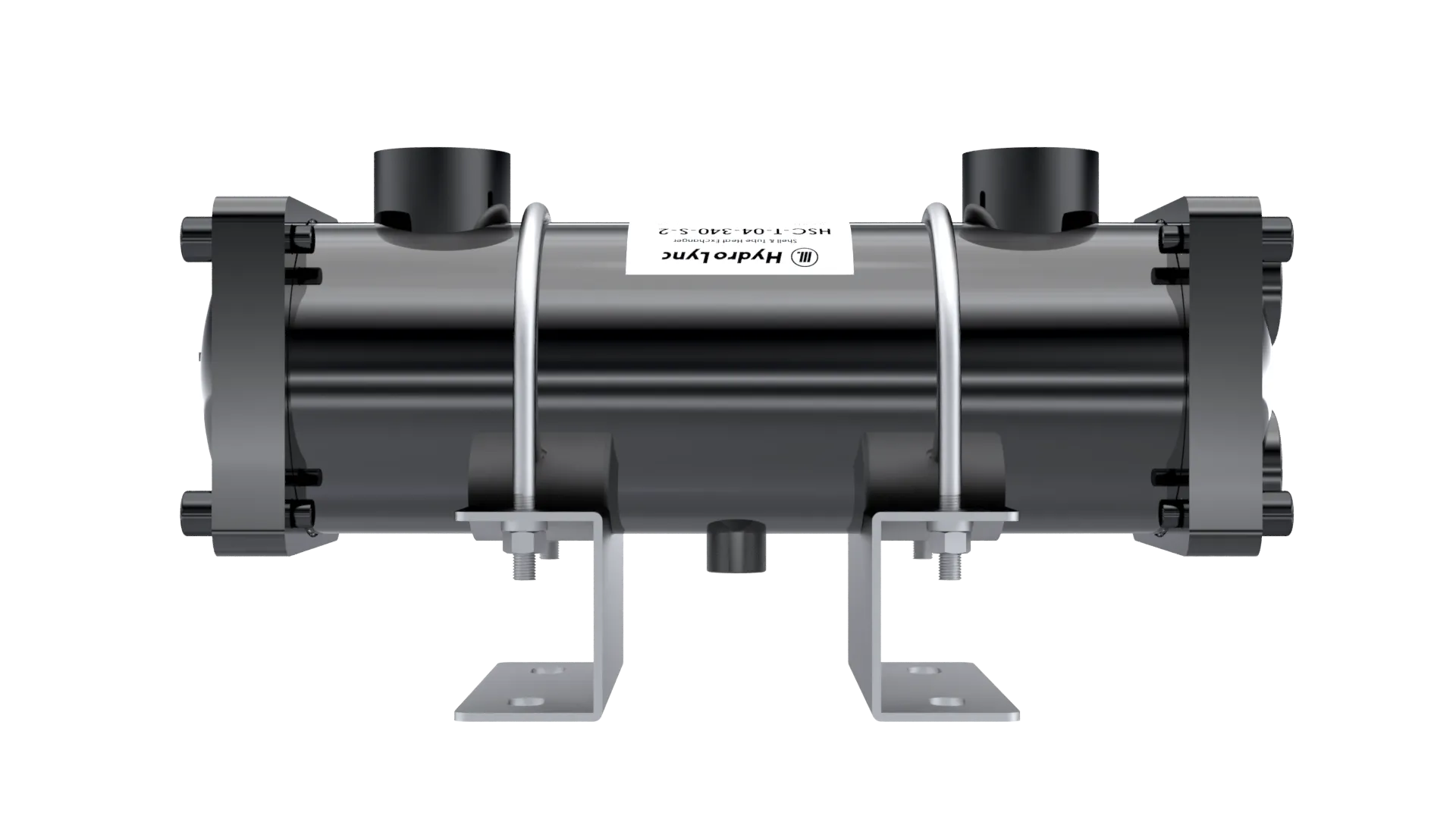

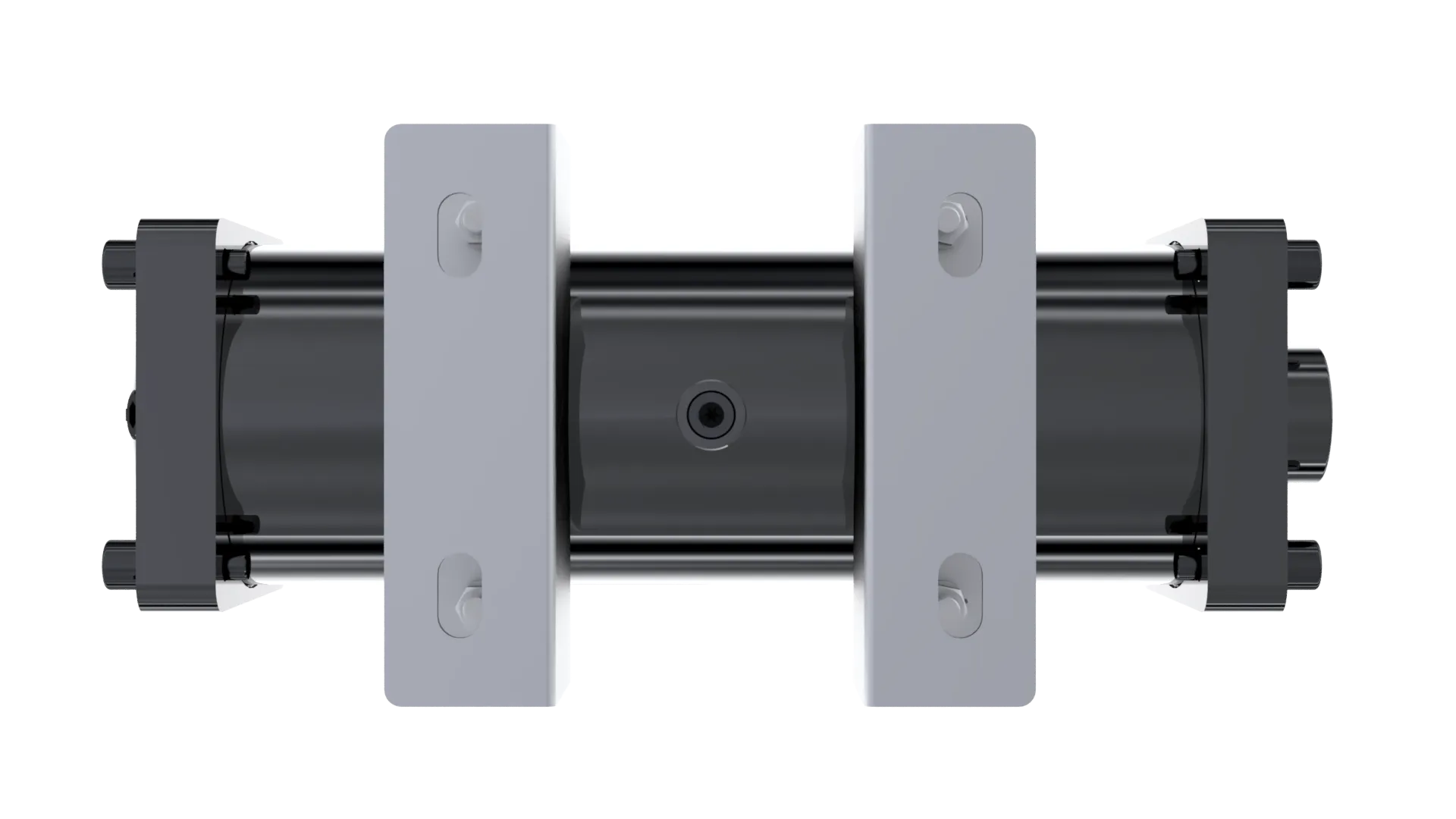

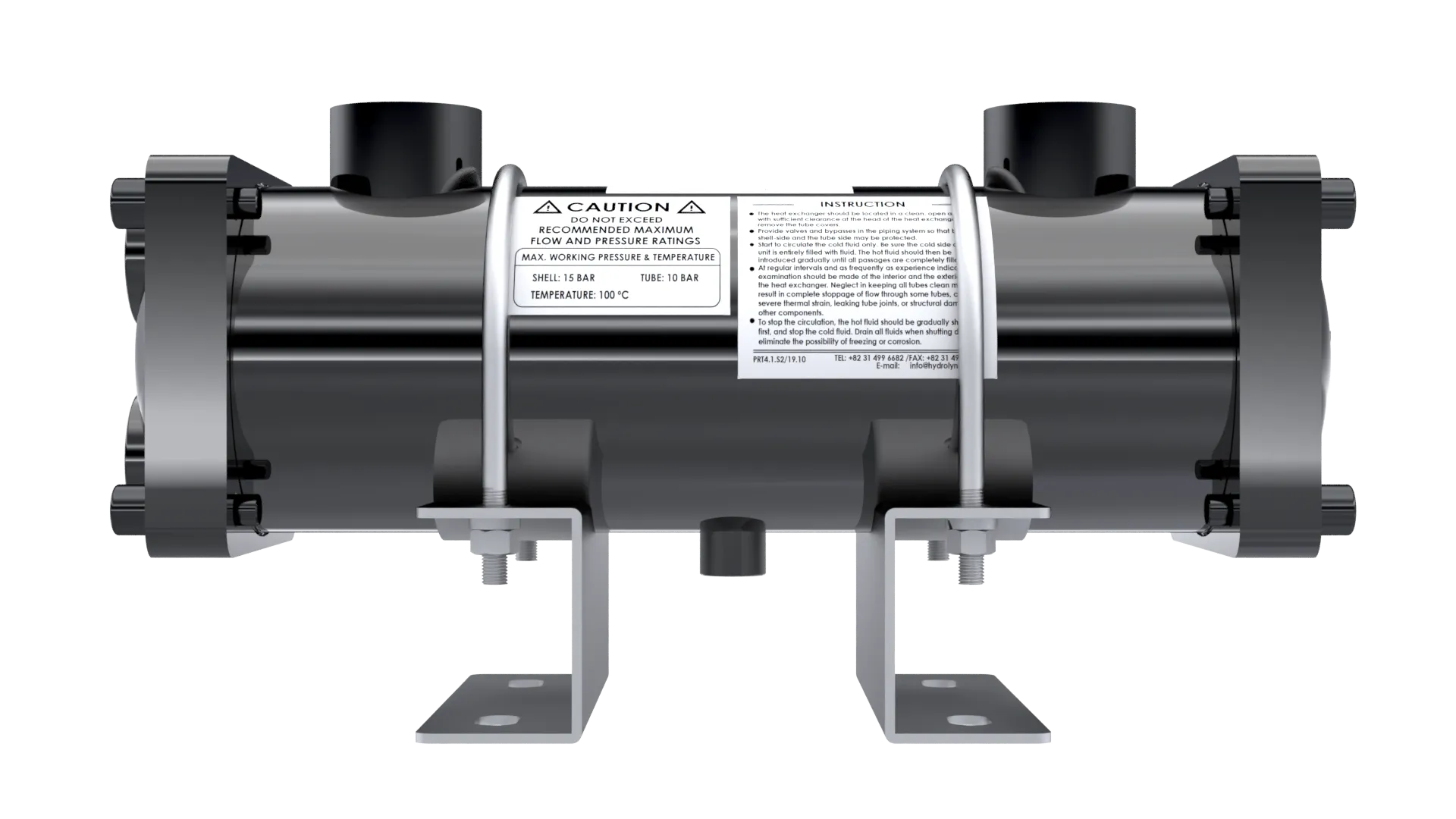

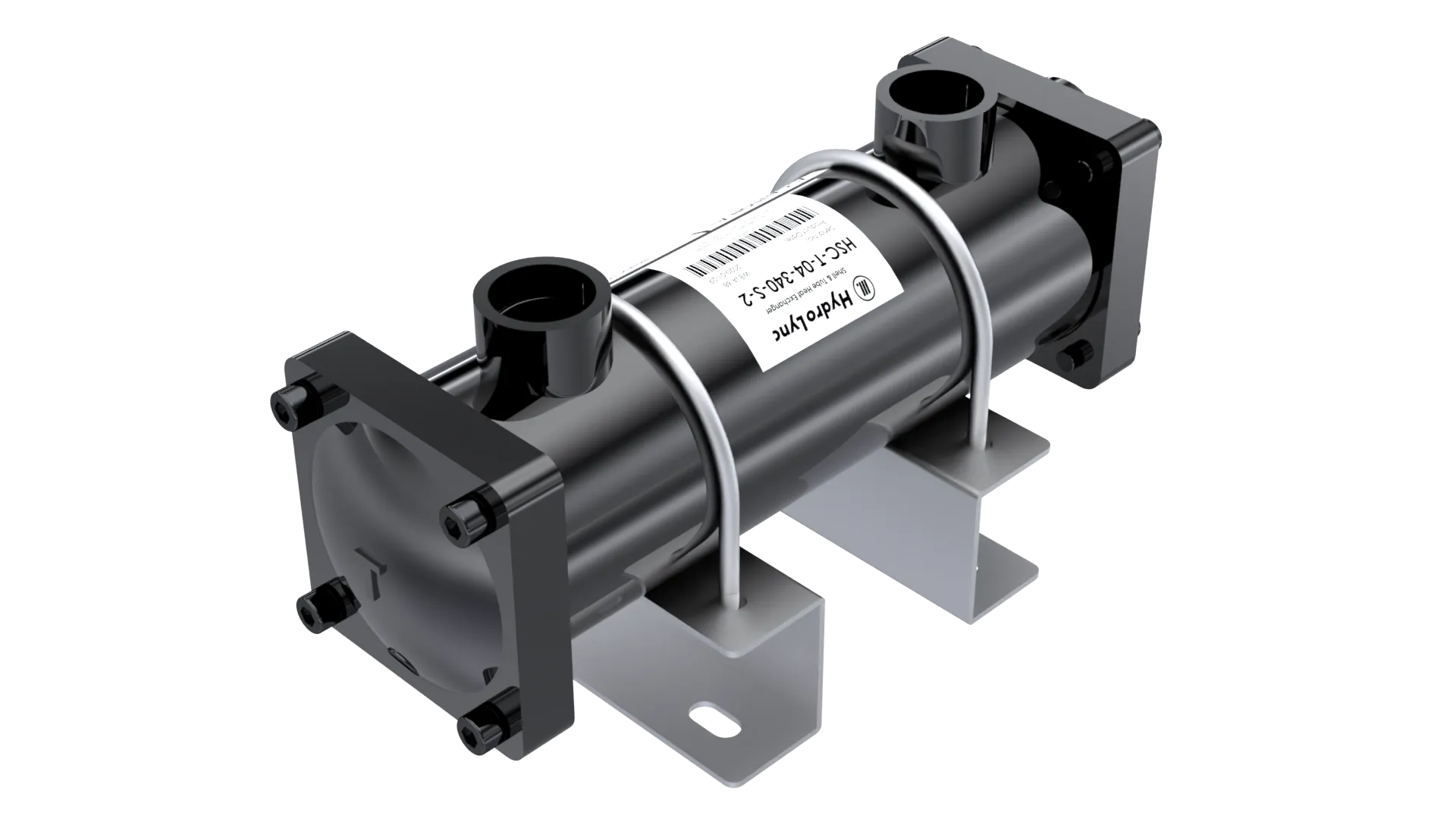

HydroLync HSC-T-4-340-S shell and tube heat exchanger
Quick Specifications
Heat Transfer Area1.2 m²
Heat Transfer (kW)26 kW
Pressure Drop (Oil)0.95 bar
Pressure Drop (Water)1.25 bar
Detailed Specifications
Performance
Heat Transfer Area
1.2 m²
Heat Transfer (kW)
26 kW
Pressure Drop (Oil)
0.95 bar
Pressure Drop (Water)
1.25 bar
Heat Transfer (kcal/h)
22200 kcal/h
Max Flow Rate
118 LPM
Working Pressure
1.25 bar
Dimensions
Overall Length (A)
392 mm
Tube Length (B)
340 mm
Shell Length (C)
216 mm
Shell Diameter (D)
114.3 mm
Oil Port (E)
1 1/4
Water Port (F)
3/4
Port Center Height (G)
125 mm
Port Spacing (H)
66 mm
Flange Diameter (I)
208 mm
Foot Spacing (J)
105 mm
Foot Width (K)
170 mm
Foot Height (L)
28 mm
Foot Thickness (M)
50 mm
Bolt Hole (N)
13x25
Base Length (O)
146 mm
Technical Specifications
Oil Flow Rate
200 L/min
Water Flow Rate
118 L/min
Max Working Pressure - Shell (bar)
15 bar
Max Working Pressure - Cover (bar)
10 bar
Max Test Pressure - Shell (bar)
22 bar
Max Test Pressure - Cover (bar)
15 bar
Fluid Channels - Shell
1 Pass
Fluid Channels - Cover
2 Pass
