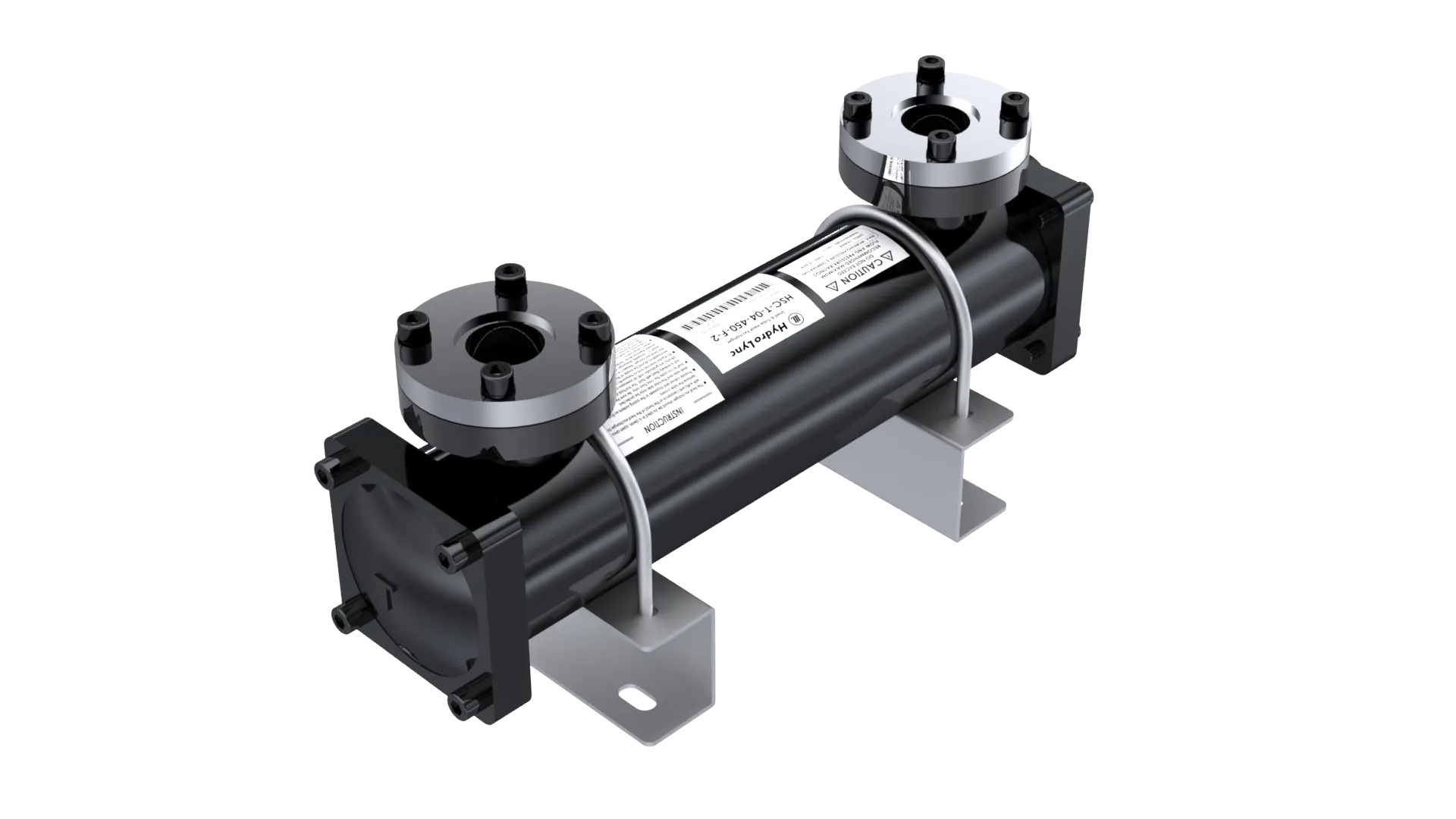

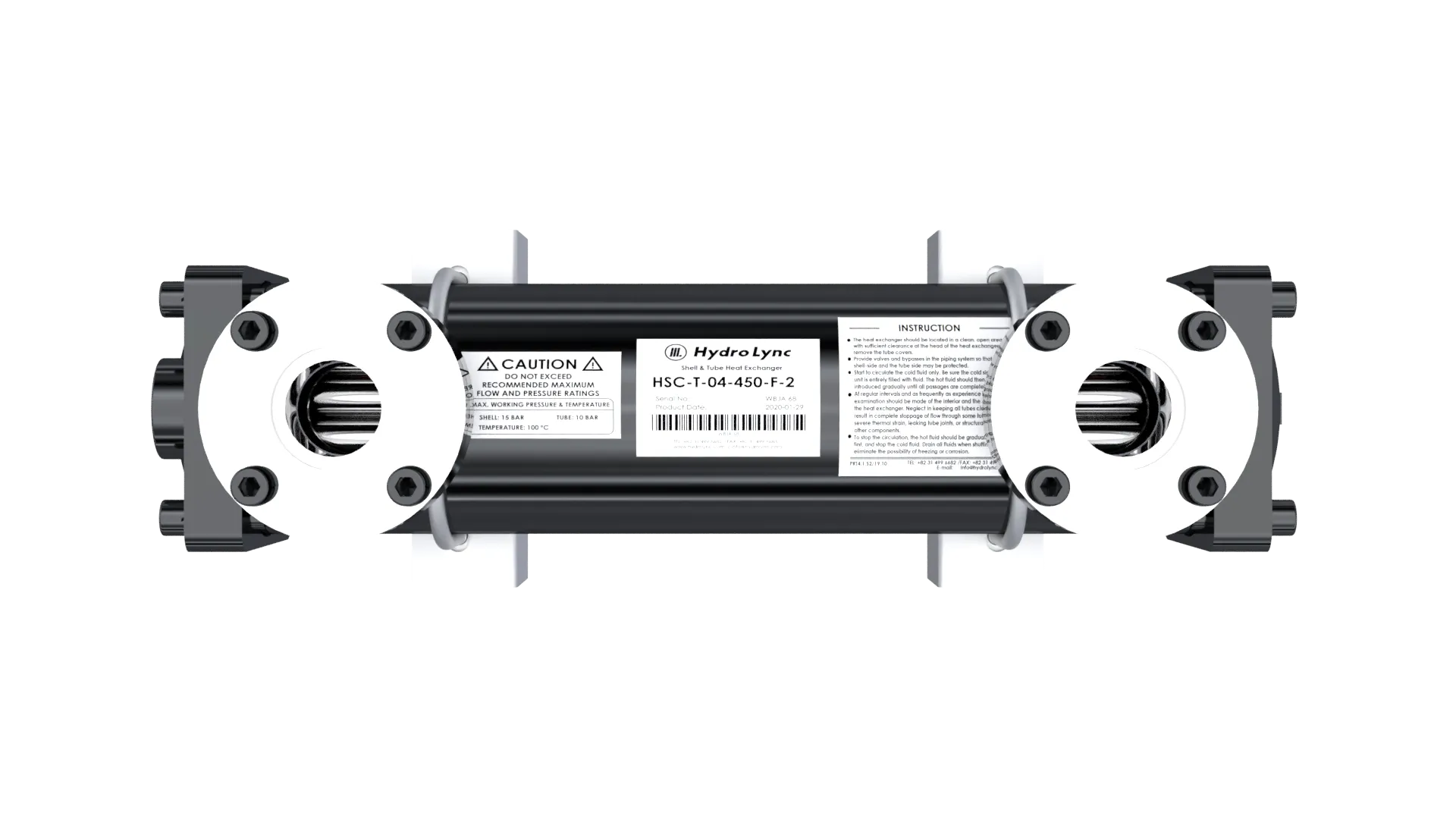

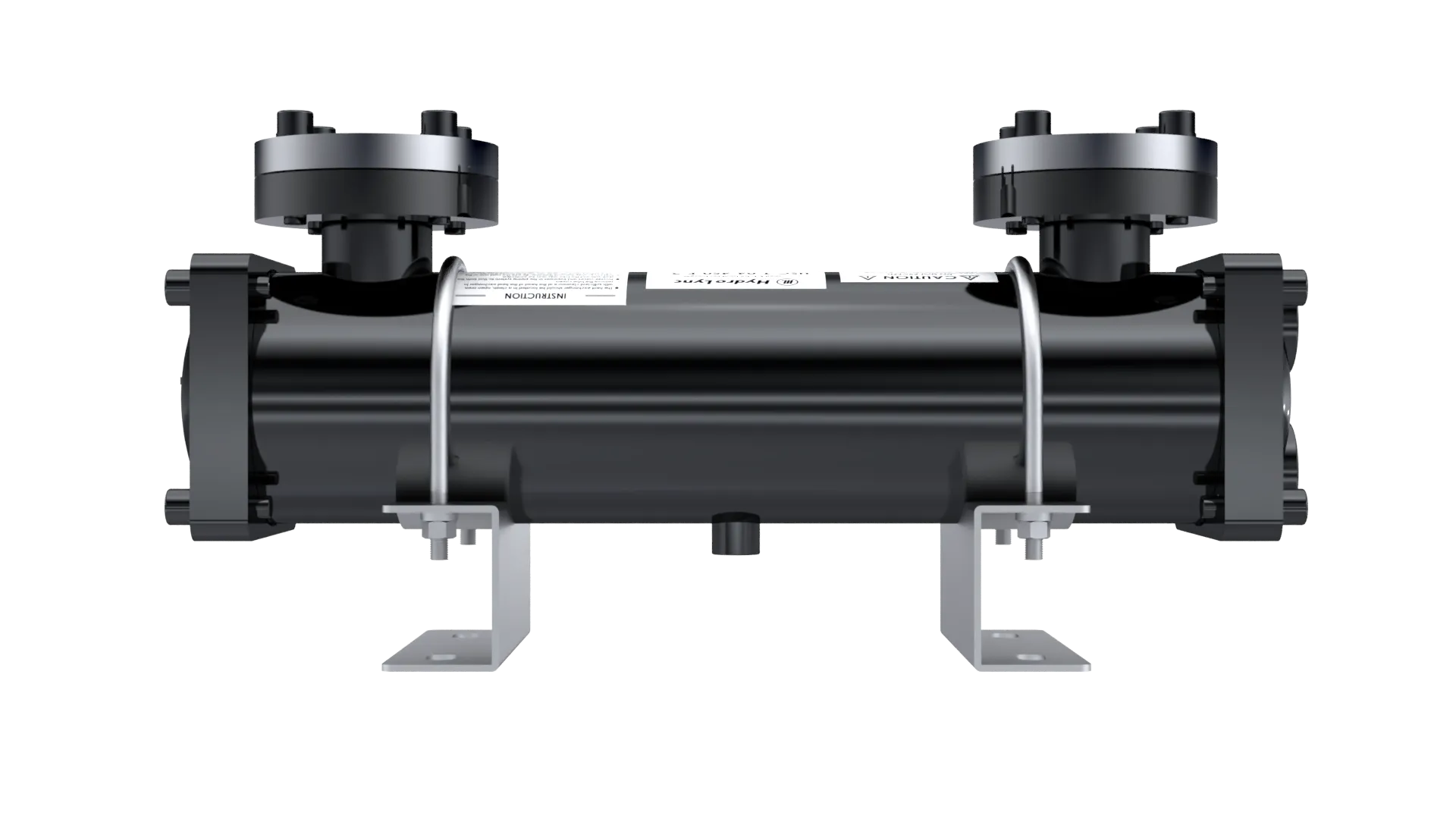

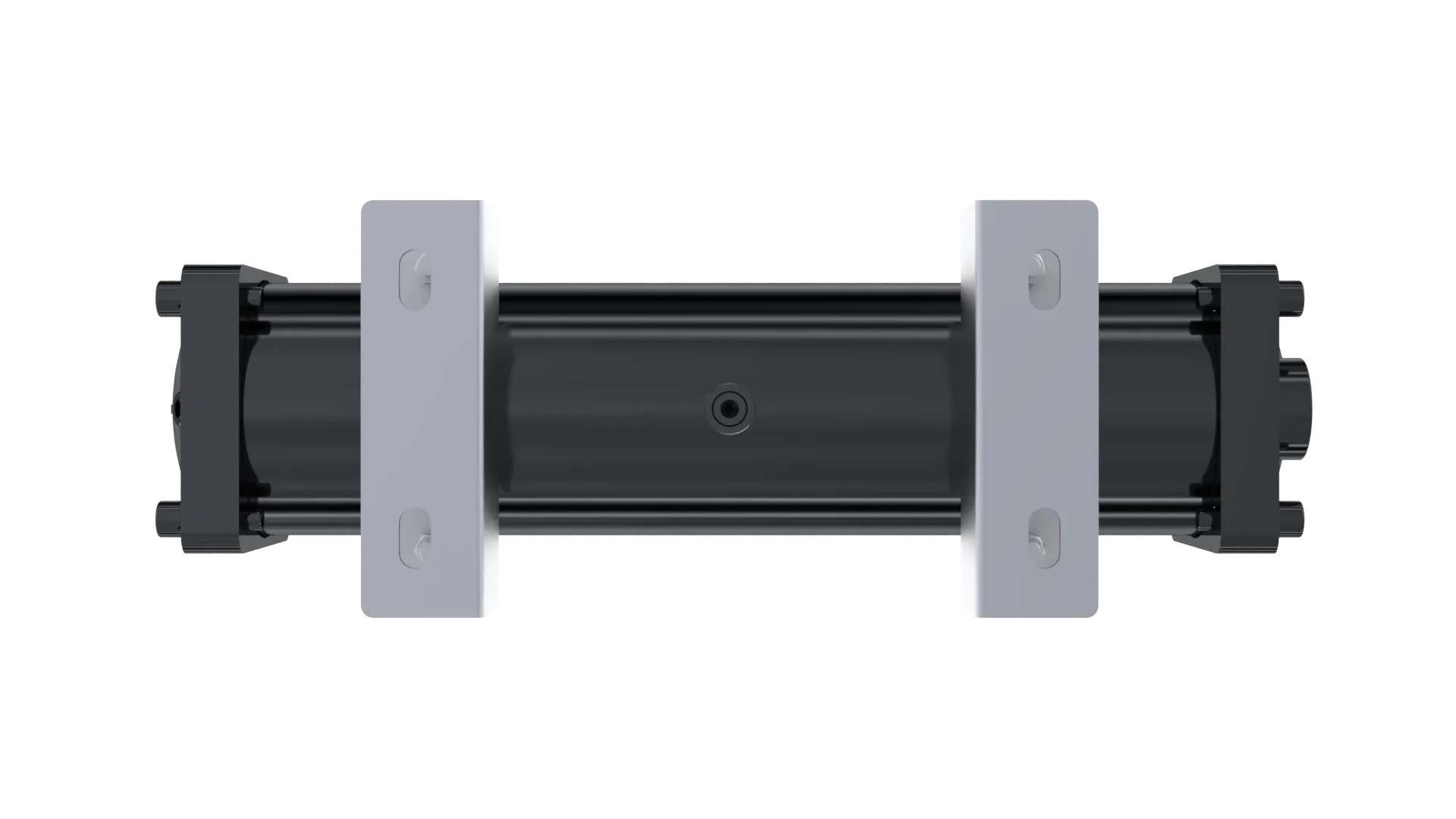

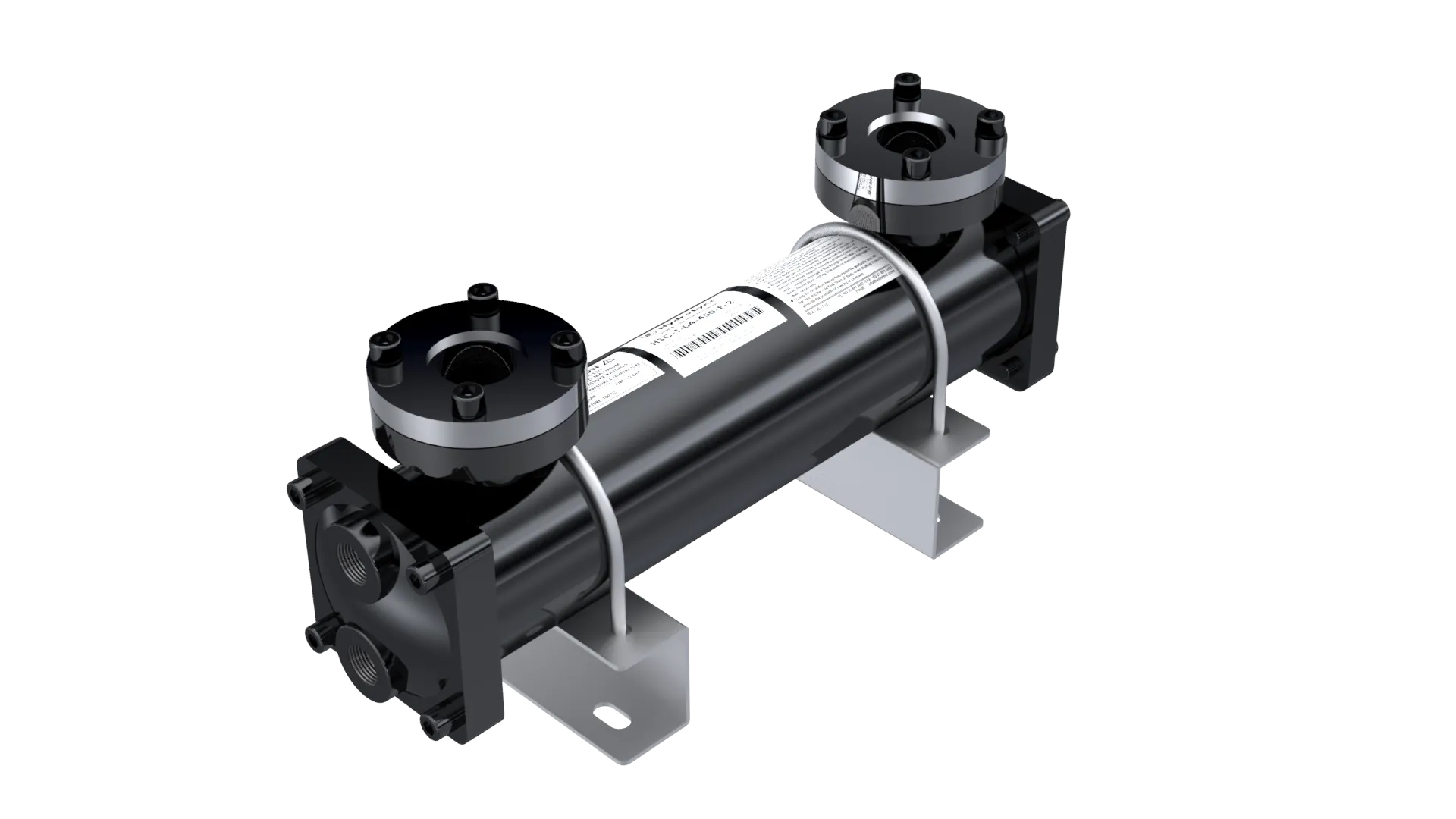

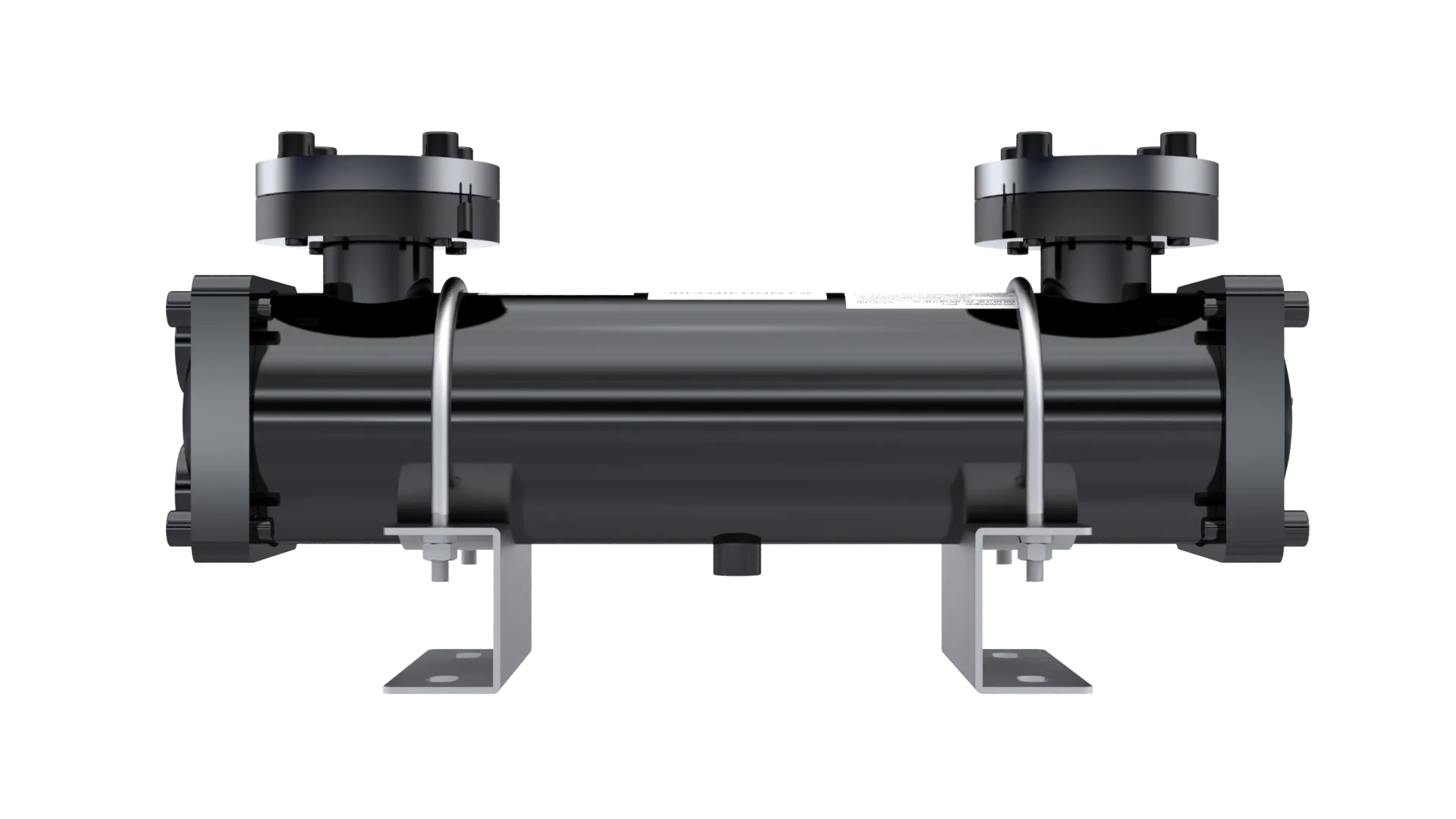

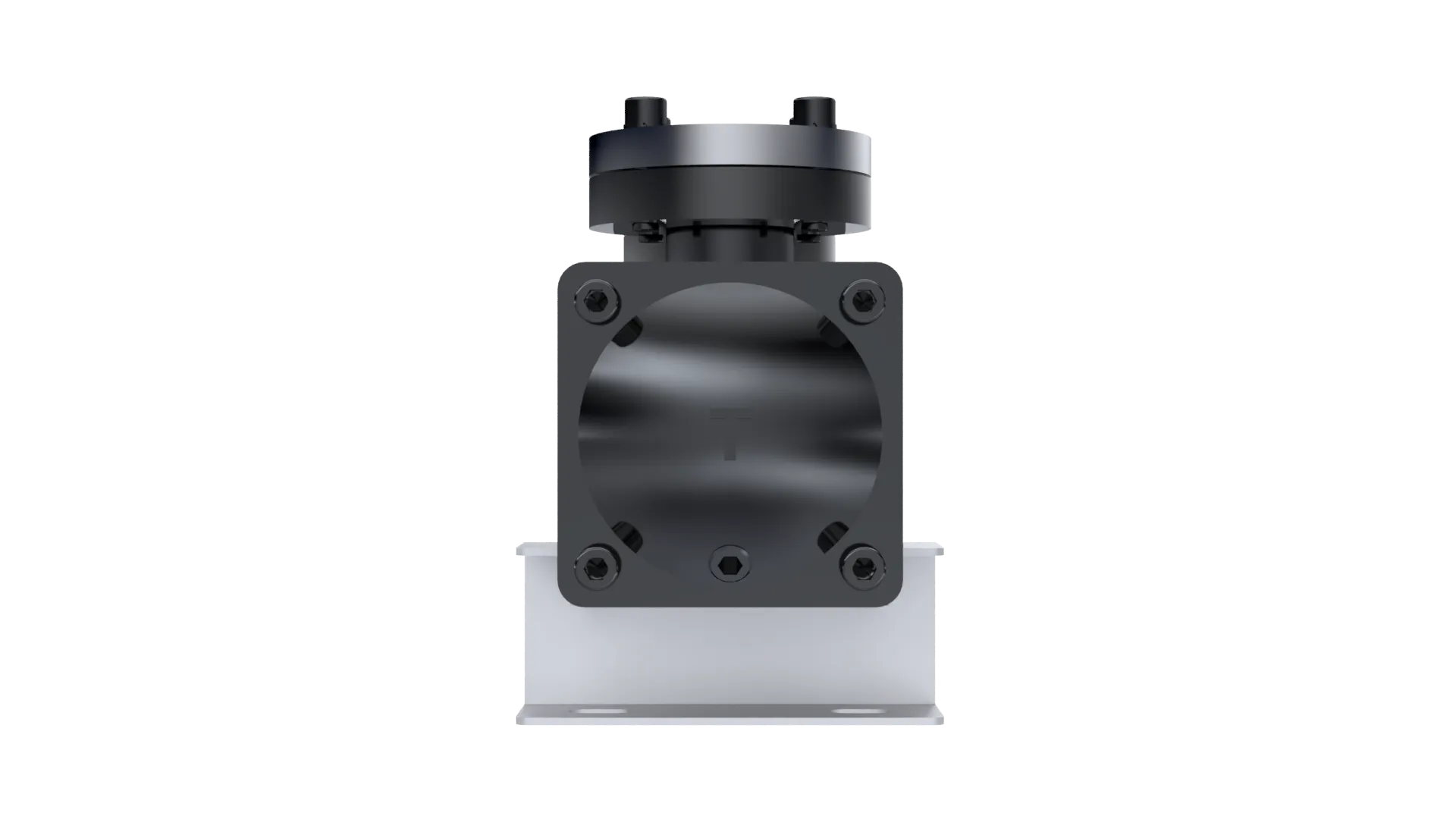

HSC T-4-450 (F) Shell & Tube Cooler
Product specifications and documentation
HSC-T-4-450-F
HSC T-4-450 (F) Shell & Tube Cooler
Quick Specifications
Heat Transfer Area1.6 m²
Heat Transfer (kW)29 kW
Pressure Drop (Oil)0.97 bar
Pressure Drop (Water)1.33 bar
Detailed Specifications
Performance
Heat Transfer Area
1.6 m²
Heat Transfer (kW)
29 kW
Pressure Drop (Oil)
0.97 bar
Pressure Drop (Water)
1.33 bar
Heat Transfer (kcal/h)
25200 kcal/h
Dimensions
Overall Length (A)
502 mm
Tube Length (B)
450 mm
Shell Length (C)
326 mm
Shell Diameter (D)
114.3 mm
Oil Port (E)
32A
Water Port (F)
3/4
Port Center Height (G)
125 mm
Port Spacing (H)
66 mm
Flange Diameter (I)
228 mm
Foot Spacing (J)
105 mm
Foot Width (K)
170 mm
Foot Height (L)
28 mm
Foot Thickness (M)
50 mm
Bolt Hole (N)
13x25
Base Length (O)
256 mm
Technical Specifications
Oil Flow Rate
200 L/min
Water Flow Rate
118 L/min
Max Working Pressure - Shell (bar)
15 bar
Max Working Pressure - Cover (bar)
10 bar
Max Test Pressure - Shell (bar)
22 bar
Max Test Pressure - Cover (bar)
15 bar
Fluid Channels - Shell
1 Pass
Fluid Channels - Cover
2 Pass
