Clamp Band
Product specifications and documentation
Recommended
Compatible with:HBA
Clamp Band
Clamp band for securing HBA bladder accumulators to mounting surfaces
HBA-CLAMP-BAND
Quick Specifications
TypeClamp Band
MaterialCarbon Steel (Zinc plated) / Stainless Steel
Detailed Specifications
General
| Type | Clamp Band |
|---|---|
| Material | Carbon Steel (Zinc plated) / Stainless Steel |

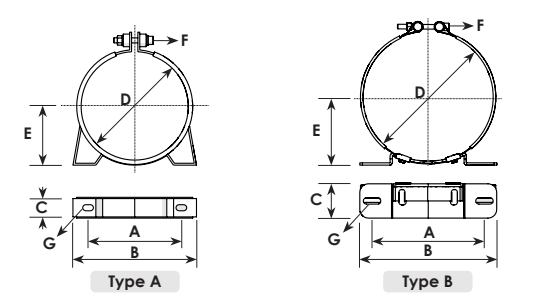

Dimensional Reference
Selection Table
| Volume | Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Bolt (F) | Slot (G) |
|---|---|---|---|---|---|---|---|---|
| 1~2.5L | B | 109 | 136 | 30 | 114 | 66 | M8x55 | 10x17 |
| 4~6L | A | 148 | 191 | 30 | 168 | 93 | M8x55 | 10x17 |
| 10~57L | B | 193 | 235 | 60 | 223 | 117 | M8x80 | 11x30 |
