Permanent Gauge
Product specifications and documentation
Optional
Compatible with:HBA
Permanent Gauge
Digital pressure monitoring gauge for HBA accumulators.
HBA-GAUGE
Quick Specifications
TypePermanent Gauge (APG)
MaterialCarbon Steel - Zinc plated
Patent10-210742
FeatureReady-to-use design with HGV-B01 gas valve — immediate use without nitrogen release or adapter
Detailed Specifications
General
| Type | Permanent Gauge (APG) |
|---|---|
| Material | Carbon Steel - Zinc plated |
| Patent | 10-210742 |
| Feature | Ready-to-use design with HGV-B01 gas valve — immediate use without nitrogen release or adapter |

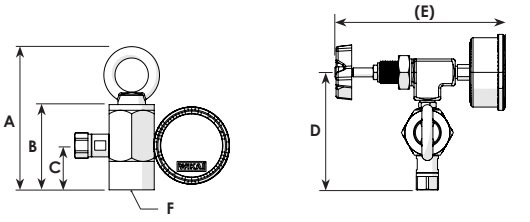

Dimensional Reference
Selection Table
| Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Connection (F) |
|---|---|---|---|---|---|---|
| B | 136 | 85 | 39 | 105 | 153 | 7/8" 14UNF 1A |
| T | 151 | 100 | 57 | 105 | 153 | 7/8" 14UNF 1A |
| M | 128 | 77 | 37 | 120 | 153 | M50 x 1.5 |
