Flange
Product specifications and documentation
Recommended
Compatible with:HBA
Flange
Mounting flange for HBA bladder accumulator hydraulic connections
HBA-FLANGE
Quick Specifications
TypeMounting Flange
MaterialCarbon Steel
Detailed Specifications
General
| Type | Mounting Flange |
|---|---|
| Material | Carbon Steel |

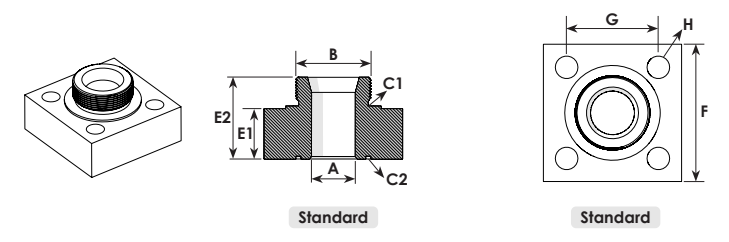

Dimensional Reference
Selection Table
| Volume | Type | Code | A | Port B | C1 | C2 | D | E1 (mm) | E2 (mm) | F (mm) | G (mm) | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1~6L | 110x110 | R4 | 29 | G1 1/4" | G55 | G55 | N/A | 40 | 64 | 110 | 73 | Ø18 |
| 10~57L | 110x110 | R10 | 35 | G2" | G55 | G55 | N/A | 40 | 64 | 110 | 73 | Ø18 |
* For other options, please inquire with the sales manager.
