Mount Bracket
Product specifications and documentation
Recommended
Compatible with:HBA
Mount Bracket
Wall or panel mount bracket for HBA bladder accumulators
HBA-MOUNT-BRACKET
Quick Specifications
TypeMounting Bracket
MaterialSteel
MountingWall / Panel mount
Detailed Specifications
General
| Type | Mounting Bracket |
|---|---|
| Material | Steel |
| Mounting | Wall / Panel mount |

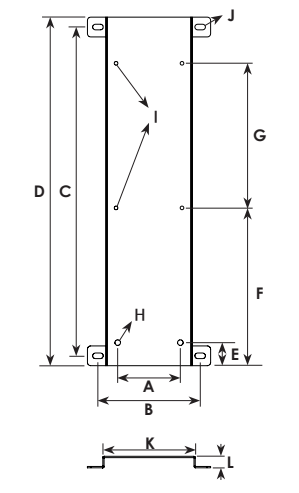

Dimensional Reference
Selection Table
| Volume | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1L | 110 | 260 | 190 | 250 | 30 | 170 | N/A | Ø13 | Ø10 | Ø14 | 210 | 30 |
| 2.5L | 110 | 260 | 390 | 450 | 30 | 270 | N/A | Ø13 | Ø10 | Ø14 | 210 | 30 |
| 4L | 148 | 260 | 260 | 320 | 40 | 230 | N/A | Ø17 | Ø10 | Ø14 | 210 | 50 |
| 6L | 148 | 260 | 390 | 450 | 40 | 300 | N/A | Ø17 | Ø10 | Ø14 | 210 | 50 |
| 10L | 200 | 310 | 340 | 400 | 70 | 300 | N/A | Ø17 | Ø10 | 17x32 | 260 | 30 |
| 20/24.5L | 200 | 310 | 640 | 700 | 70 | 550 | N/A | Ø17 | Ø10 | 17x32 | 260 | 30 |
| 32/42L | 200 | 310 | 1090 | 1150 | 70 | 440 | 500 | Ø17 | Ø10 | 17x32 | 260 | 30 |
| 50/57L | 200 | 310 | 1440 | 1500 | 70 | 740 | 560 | Ø17 | Ø10 | 17x32 | 260 | 30 |
