SAE Flange
Product specifications and documentation
Recommended
Compatible with:HBA
SAE Flange
SAE standard flange adapter for HBA bladder accumulators
HBA-SAE-FLANGE
Quick Specifications
TypeSAE Flange Adapter
MaterialCarbon Steel
Detailed Specifications
General
| Type | SAE Flange Adapter |
|---|---|
| Material | Carbon Steel |

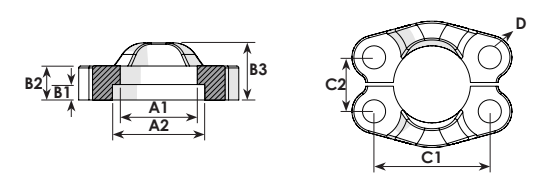

Dimensional Reference
Selection Table
| Type | A1 (mm) | A2 (mm) | B1 (mm) | B2 (mm) | B3 (mm) | C1 (mm) | C2 (mm) | D |
|---|---|---|---|---|---|---|---|---|
| 3000psi 40A 1 1/2" | 50.8 | 61.1 | 7.5 | 16 | 25 | 69.85 | 35.72 | Ø11.8 |
| 3000psi 50A 2" | 62.75 | 72.25 | 9 | 16 | 26 | 77.77 | 42.88 | Ø13.3 |
| 6000psi 40A 1 1/2" | 51.6 | 64.3 | 12.1 | 30 | 43 | 79.38 | 36.52 | Ø17 |
| 6000psi 50A 2" | 67.6 | 80.2 | 12.1 | 37 | 52 | 96.82 | 44.46 | Ø21 |
* For other options, please inquire with the sales manager.
