SAE Oil Port
Product specifications and documentation
Recommended
Compatible with:HBA
SAE Oil Port
SAE standard oil port adapter for HBA bladder accumulators
HBA-SAE-OIL-PORT
Quick Specifications
TypeSAE Oil Port Adapter
Application10~57L accumulators
Detailed Specifications
General
| Type | SAE Oil Port Adapter |
|---|---|
| Application | 10~57L accumulators |

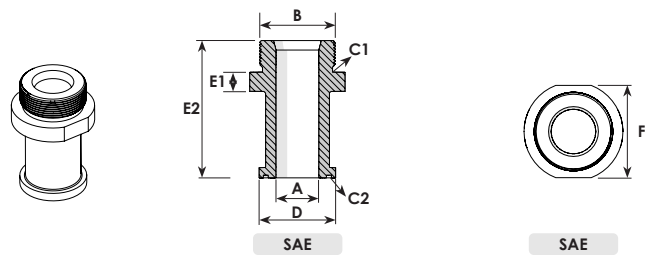

Dimensional Reference
Selection Table
| Volume | Type | Code | A (mm) | Port B | C1 | C2 | D (mm) | E1 (mm) | E2 (mm) | F (mm) | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10~57L | 3000psi | S34 | 34 | G2" | G55 | G55 | 60.3 | 15 | 104 | 70 | - | - |
| 10~57L | 3000psi | S35 | 43 | G2" | G55 | P55 | 71.4 | 15 | 105.5 | 70 | - | - |
| 10~57L | 6000psi | S64 | 34 | G2" | G55 | G55 | 63.5 | 15 | 108.5 | 70 | - | - |
| 10~57L | 6000psi | S65 | 43 | G2" | G55 | P55 | 79.4 | 15 | 108.5 | 70 | - | - |
* For other options, please inquire with the sales manager.
