Support Bracket
Support bracket for vertical or horizontal mounting of HBA accumulators
HBA-SUPPORT-BRACKET
Quick Specifications
TypeSupport Bracket
MaterialCarbon Steel (Zinc plated)
Detailed Specifications
General
| Type | Support Bracket |
|---|---|
| Material | Carbon Steel (Zinc plated) |

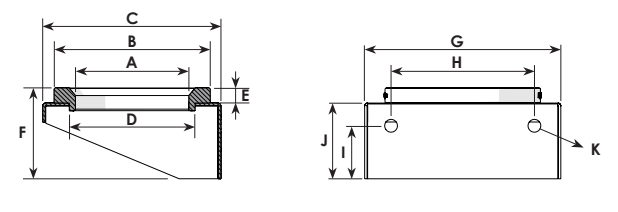

Dimensional Reference
Selection Table
| Volume | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1~2.5L | 70 | 92 | 138 | 79 | 7 | 69 | 175 | 100 | 30 | 60 | Ø13 |
| 4~6L | 108 | 136 | 175 | 128 | 15 | 95 | 210 | 160 | 55 | 80 | Ø17 |
| 10~57L | 150 | 206 | 235 | 166 | 20 | 120 | 260 | 190 | 70 | 100 | Ø17 |
