N2 Charging Kit
Product specifications and documentation
Recommended
Compatible with:HBA
N2 Charging Kit
Nitrogen gas charging and testing kit for HBA bladder accumulators
HBA-HCB
Quick Specifications
TypeN2 Charging Kit (HCB)
MaterialCarbon Steel - Zinc plated
Charging HoseLength 2.8m, Max. operating pressure 210 bar
CompatibilityHigh compatibility, supports products from other brands
Detailed Specifications
General
| Type | N2 Charging Kit (HCB) |
|---|---|
| Material | Carbon Steel - Zinc plated |
| Charging Hose | Length 2.8m, Max. operating pressure 210 bar |
| Compatibility | High compatibility, supports products from other brands |

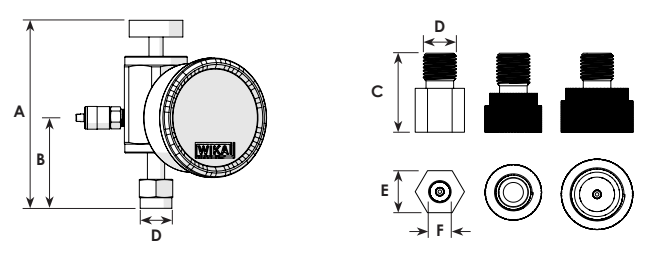

Dimensional Reference
Selection Table
| A (mm) | B (mm) | C (mm) | Connection D | E (mm) | Connection F |
|---|---|---|---|---|---|
| 107 | 51.5 | 31.5 | G 1/4" | 18.5 | 5/16"-32UNF |
| 107 | 51.5 | 31.5 | G 1/4" | 22.5 | 5/8"-18UNF |
| 107 | 51.5 | 31.5 | G 1/4" | 28.5 | 7/8"-14UNF |
