Gas Booster
Product specifications and documentation
Optional
Compatible with:HBA
Gas Booster
Gas booster for high-pressure nitrogen charging of HBA bladder accumulators
HBA-HGB
Quick Specifications
TypeGas Booster (HGB)
DriveCompressed air driven
DescriptionCompetitive pricing, excellent performance, focusing on core N2 filling function. Easy to use and highly mobile.
Detailed Specifications
General
| Type | Gas Booster (HGB) |
|---|---|
| Drive | Compressed air driven |
| Description | Competitive pricing, excellent performance, focusing on core N2 filling function. Easy to use and highly mobile. |

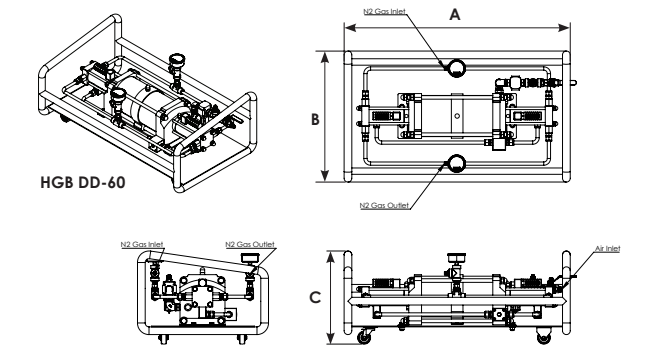

Dimensional Reference
Selection Table
| Model | Booster Type | A (mm) | B (mm) | C (mm) | Ratio | Max P. (bar) | Suction (bar) | Discharge (nL/min) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| HGB DD-50 | Double stage & Double driven | 750 | 510 | 362 | 1:50 | 300 | 21 | 1,130 | 25 |
| HGB DD-50-R | Double stage & Double driven | 750 | 510 | 600 | 1:50 | 300 | 21 | 1,130 | 30 |
| HGB DD-60 | Double stage & Double driven | 880 | 510 | 362 | 1:60 | 360 | 28 | 2,050 | 29 |
| HGB DD-60-R | Double stage & Double driven | 880 | 510 | 600 | 1:60 | 360 | 28 | 2,050 | 35 |
* R: Automatic filling method (equipped with regulators). Discharge rate under no load, may vary.
